Data Sheet

Overview

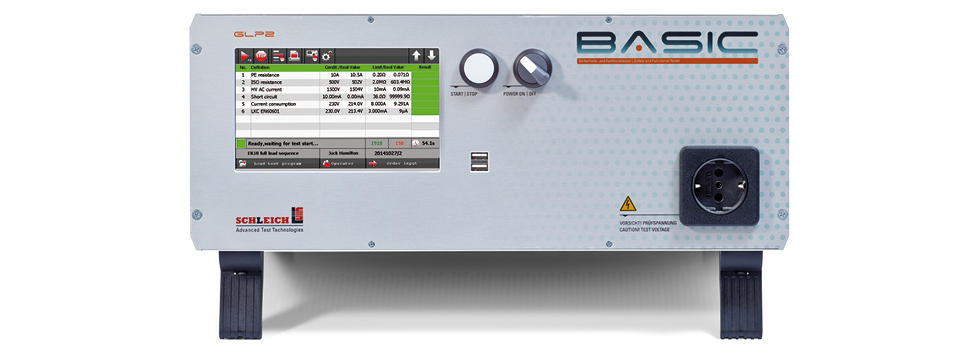

With the single- or multi tester GLP2-BASIC all kinds of electronic products can be inspected with today’s state-of-the-art technology. The 42 GLP2-BASIC types offer the perfect solution for a variety of measurement tasks and your individual requirements. Due to its many intelligent features the tester covers all application fields in the modern safety- and function test technology. It is perfectly suited for production, laboratory, test bench, quality assurance, automation and more. The possibility of flexible creation of test plans, entering test data e.g. the serial number, result storage, freely-configurable label print, barcode function and more features leave nothing to desire. For most companies, the increase of energy efficiency regarding cost savings and acting in an environmentally-friendly manner, is of utmost importance. We consider it our responsibility to support our customers with sustainable and environmentally-friendly test technology, especially in the energy-intensive sector “production”. For a clean eco-friendly result! Schleich are constantly making every effort to integrate latest test technology in our testers and give our customers the best possible benefit. With this philosophy, we have been the first who focused on a user-friendly working environment by installing touch displays in Schleich testers. Ergonomically optimized work stations increase the output significantly. That is why we revolutionized the cabinet design of our testers! No matter if sitting or standing, a small or a tall person – our ergonomic design sets new standards for fatigue-free working. The view on the display, data entry as well as connection of test object to test socket are always perfect. Great versatility and fast test technology combined with ergonomic design – Schleich offers a safety- and function test technology that inspires!

Key Features

  • PE/ ground testers up to 30 A
  • Insulation resistance testers up to 6 kV
  • High-voltage testers AC up to 6 kV
  • High-voltage testers DC up to 6 kV
  • Functional test up to 16 A
  • Traceable calibration certificate included
  • Short lead time or available on stock
  • All test methods fully-electronic controlled
  • Fully- and semi automatic controlled tests
  • Manual tests
  • PLe, SIL3, Kat4 Safety circuit (depending on device variant and degree of risk)
  • High process reliability
  • Integrated „SPS-functionality” with freely programmable script language
  • Intuitive operation concept with 7″ touch display plus HDMI-interface
  • Additional input with keyboard and mouse possible
  • Reading of various 1D- and 2D barcodes
  • Ethernet, WLAN, USB and serial interface
  • Communication via RS232 and/or SCPI-standard-commands
  • Database for test sequences and test results
  • User administration
  • Protocon print-out
  • Freely configurable label print for thermal transfer printers
  • Several label printers controllable
  • Full network connectivity
  • Possibility for remote maintenance or remote calibration
  • Remote control option for automation
