Overview

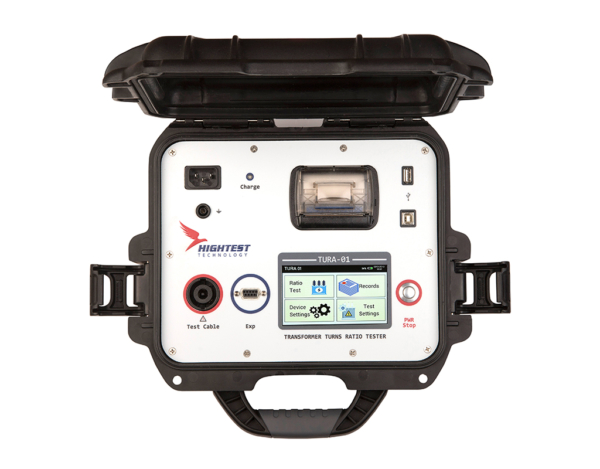

TURA-01 is designed using advanced engineering technology to measure the turns ratio of single-phase and three-phase transformers. TURA-01 has fast, easy and accurate TTR measurement features for current, voltage and power transformers using its user-friendly software. TURA-01 is one of the most accurate devices with its wide range (0.8 to 33,000) ratio measurement capability and high precision (0.08 %). Besides the ratio measurement, TURA-01 can also measure excitation current, phase angle, polarity, and ratio error. Even though TURA-01 has a single-phase cable configuration, the user can make three-phase transformer tests. TURA-01 can show all kinds of connection diagrams on display which can change depending on transformer configuration. The operator doesn’t need to search for a connection diagram. TURA-01 has a wide operation range from high excitation current transformer to high powered power transformer at substations with the 1V, 4V, 10V, 40 V and 100 V AC test voltage generation capability. A 4.3-inch touch display allows TURA-01 to show all measurement results on a single screen. USB, Bluetooth (Option) and Flash Memory features allow TURA-01 to control, record and store measurement results (up to 100 Test Records). With the HighTest Data Management Platform (DMP Software), users can control TURA-01 and analyse measurement results. Operators can easily print the measurement results with the 2.25-inch built-in Printer of TURA-01. Multi-language capability and user-friendly operation menu make it easy to control TURA-01, even by less trained staff. By using the optional TPA-03 Three Phase Adapter, the user can make 3-phase connection and can test all phases simultaneously. TURA-01 is a light, compact and rugged device with the protection of IP67 (case closed).

Features

• Turns Ratio Measurement
• (Single-phase and three-phase measurement)
• Ranges from 0.8 to 33,000 ratio measurement
• High accuracy (0.08 %)
• 1V, 4V, 10V, 40 V and 100 V AC test voltage
• Ratio error measurement
• Excitation current, phase angle, polarity measurement
• Built-in printer
• Internal memory, USB Flash Drive
• PC control via USB cable
• Optional Bluetooth control and communication
• 4.3-inch large colour touch display
• Optional expansion feature with Three- Phase Adapter (TPA-03)

Models

• Tura-01Blue, 100V with Built in Bluetooth and Printer
• Tura-01, 100V with Built in Printer
