Data Sheet

Overview

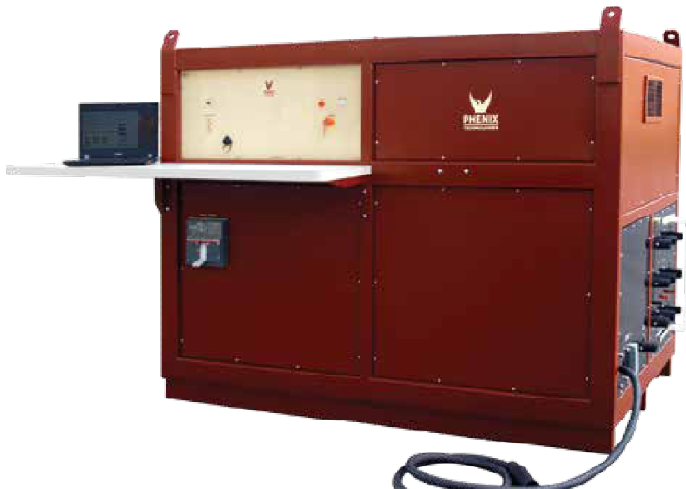

The Phenix Technologies Core Loss Test Set is a continuously variable low voltage, high current power supply for testing stators, rotors, and armature cores. These units have very low distortion, independent of load and output setting. This insures test results that are both accurate and repeatable. The basic test set includes complete instrumentation, output and voltmeter cables, computer and printer. The computer is used for complete control, metering, data storage and evaluation of test results. Operation of the test set is as easy as hooking up the test leads, typing in the parameters of the test and pushing a button. The test set takes over from there; automatically ramps up the voltage, records the results, does all the necessary calculations and ramps the voltage back down. The automated function eliminates operator error; several pre-programmed messages will alert the operator of test set up errors, saving time and increasing operator safety. A database can be built for specific motors tested. Past results can be easily accessed when re-testing a motor that has been tested in the past, making trend analysis quick and easy. The operating software interfaces with the test sets Programmable Logic Controller (PLC) that in turn guides the test set through its test functions. The PLC eliminates a large portion of circuitry required in manual test units. With less circuitry, the test set becomes much more reliable and easier to troubleshoot if a problem does occur. Precision control of the output setting is possible with 3-5 ranges per output tap. This translates into 3-5 times greater regulation of the output voltage setting. A meter calibration is done through the computer; saving time and insuring accurate readings. There is no need to remove panels off the test set to calibrate the metering. The duty cycle allows the operator to overexcite and heat the core sufficiently to locate hot spots.

Safety and Design Features

  • Main power circuit breaker
  • Fused power control circuits
  • Emergency Off pushbutton
  • Multi-range digital meters
  • External interlock provision
  • Continuously variable output
  • Thermal overload protection
  • Output is controlled by a motorized voltage regulator with variable rate of rise
  • Output cables for stator testing
  • Internal, external, and transient overload protection
  • Zero-start interlock
  • Rugged steel cabinet
  • Casters, lockable cover, and storage hook (CL10B, CL25B, CL60B, CL125B)
  • Separate voltmeter leads for greater metering accuracy
  • Operation/Maintenance manual
